Changes I made to map.svg you can find within the attached file http://www.twiki.org/p/pub/Codev/WhereamiWindows/map.svg.diff.

• TWiki Initialisation
• Use CGI instead of Lite version
• pathes are used from TWiki Configuration
• switch weather to use the %SEARCH{}% tags

Now comes the big part

Perl Modules required

• GraphViz 1.4 (http://aspn.activestate.com/ASPN/CodeDoc/GraphViz/GraphViz.html) only manual installation
• Math::Bezier 0.01 (http://aspn.activestate.com/ASPN/CodeDoc/Math-Bezier/Bezier.html) which is a CPAN Module
• IPC::Run 0.56 (http://aspn.activestate.com/ASPN/CodeDoc/IPC-Run/Run.html)

Win32 Binary Distribution for Cygwin Graphviz can be downloaded from http://www.bell-labs.com/cgi-user/wwexptools/gensnapshot/i686-pc-cygwin/graphviz.tar.gz

Changes to Graphiz.pm since IPC:Run does not correctly direct stdin to a process when running within IIS.

include
use IPC::Run qw(run); # qw(run binary);
use File::Temp qw (tempfile );

... snipp ...

sub _as_generic {
  ... snipp ...
  my $program = $self->{DIRECTED} ? 'd:\\twiki\\cygwin\\bin\\dot.exe' : 'd:\\twiki\\cygwin\\bin\\neato.exe';

  # use absolut pathes an include them in ENV{'PATH'}!
  # orig: run [$program, $type], \$dot, ">", binary(), $out;

  my ($fh, $name) = tempfile();

  print $fh $dot;
  close $fh;

  my $tmp = "$program $type $name 2>&1";
  $buffer = `$tmp`;

  unlink $name; # remove temp

  return $buffer unless defined $output;
}

-- MarkusKling - 21 Jul 2002

---

Caching

Since I have a very big TWiki with many cross-links online processing is nearly impossible without my servers going to its nees. Additional Changes made

• use MLDBM to store link and reflink hashes for each web (requires DB_File!)
• provide oopsref template
• provide task based whole TWiki rendering
• configurable time-out and tempdir

Please don't comment the code, its a 1h Hack!

The files:

• http://www.twiki.org/p/pub/Codev/WhereamiWindows/oopsref.tmpl
• http://www.twiki.org/p/pub/Codev/WhereamiWindows/map.pl
• Modify TWiki.pm to include
  • $tempdir = yourpath;
  • $graphVizTime = 24 * 60 * 60;

-- MarkusKling - 21 Jul 2002

Looks very cool. Can you think of any reason why this couldn't work on UNIX?

-- MartinCleaver - 28 Jul 2002

I'm lacking context here... what is this all about? Making a picture based navigation aid? Is this similar to TouchGraph or WebMap? Could you post a screen shot?

thanks -- MattWilkie - 31 Jul 2002

Well it works on Unix since all Perl packages work on Unix I made some quick hacks to the RPM packages an the Whereami implementation (see WebMap for the original implementation) to work with Windows directories / input-output streams etc.

What is this all about?

It is Whereami: a WebMap / TouchGraph navigation which is rendered as svg+xml. The graph is first provided in a so called "dot" structure and then converted to svg+xml with an external program called dot. The changes I made were caching these dot structures (providing them is very time consuming) and a seemless integration into the TWiki templates concept.

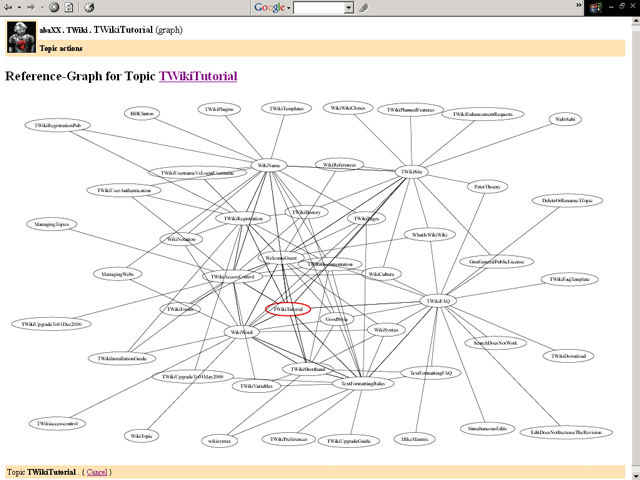

An example:

-- MarkusKling - 01 Aug 2002
